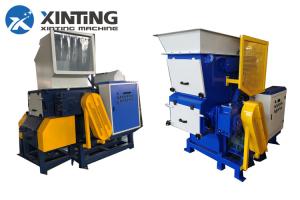

BM-600 Single Shaft Plastic Waste Shredder , Recycling Wood Shredder Machine

Name: BM600 Single Shaft Plastic Waste Shredder Recycling Wood Shredder Machine
Brand: XINTING
Price: 1 USD

Quality BM-600 Single Shaft Plastic Waste Shredder , Recycling Wood Shredder Machine for sale

Brand Name : XINTING

Model Number : DZSS-1000

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1 SET

Price : NEGOTIATE

Supply Ability : 100 SETS PER MONTH

Delivery Time : 30DAYS

Packaging Details : WOODEN CASE PACKAGE

BLADE MATERIAL : SKDII MADE IN JAPAN

SHREDDER TYPE : SINGLE SHAFT or double rollers

PUSH DEVICE : HYDRALIC PUSHING SYSTEM

HOPPER SIZE : CAN DESIGN

SHAFT NUMBER : ONE SHAFT OR TWO rollers

MOTOR : SIEMENS OR TOP BRAND IN CHINA

Contact Now

BM-600 single shaft waste plastic Shredder ,woodShredder ,recycling Shredding machine

woven bag shredder/Double roller crusher

This machine specially for waste PP / PE film, snake woven bags, tons of bags, waste paper and design, production can be according to the size of the models to 500-6000KG per hour, material size is about 40-100MM.

Main Features

characteristic:

Feeding mouth large, easy to feed;

Automatic continuous crushing, high yield;

The surface hardening treatment can be used to prolong the service life of the cutter roller surface;

Blade standardized design, so that the blade replacement fast and convenient, the use of cost reduction;

The screen size of a standard design, optional, easy to change.

The XT shredders have been designed for the most demanding and high throughput applications in recycling industries,Clients could select the corresponding models according to the material size and quantity. Well as for the different special needs, providing a special knife rotor, for shredded material as film, woven bags or nylon, ABS and PC.

Applications:
- plastic lump and plastic block, like PP, PE, PET, PC, ABS, Nylon.

- Plastic pipes

- PP/PE film,Woven bags

- Living garbage,

- Medical waste

- Electronic Waste

- Copper Cable,Aluminum Cable with steel

- Aluminum cans

- Wood,Pallet,tree root,solid wood etc

Model	SR600	SR750	SR900	SR1100
Main shaft rev(rpm)	73	73	73	73
Pushing chamber route(mm)	500	820	820	820
Rotation diameter (mm)	φ220	φ400	φ400	φ400
Number of Rotor blades (pcs)	23	33	39	49
Number of Stator blades (pcs)	4	6	6	8
Discharge height(mm)	500	600	760	760
Screen hole diameter (mm)	40	40	40	40
Motor power(kw)	18.5	37	37~45	55~75
Hydraulic power(kw)	1.5	2.2	2.2	5.5
Cutting chamber (WXL)(mm)	600x510	830x768	900x830	1130x830
Dimension(LXWXH)(mm)	1850x1300x1700	2700X1500X2000	2700x1950x2150	2700x2300x2150
Weight(kg)	Approx 1600	Approx 3300	Approx 4100	Approx 4700
